Toyota’s popular 2020 On 4Runner featured a number of updates including the addition of Adaptive Cruise Control as part of the Toyota Safety Sense system. A new ARB Summit Bar has been developed to allow relocation of the Adaptive Cruise Control system within the split pan of the Summit pan and also now accommodates the original equipment (OE) fog lights in an ARB developed fog light surround.

Importantly for both the Adaptive Cruise Control and the OE fog lights full OE adjustment is retained

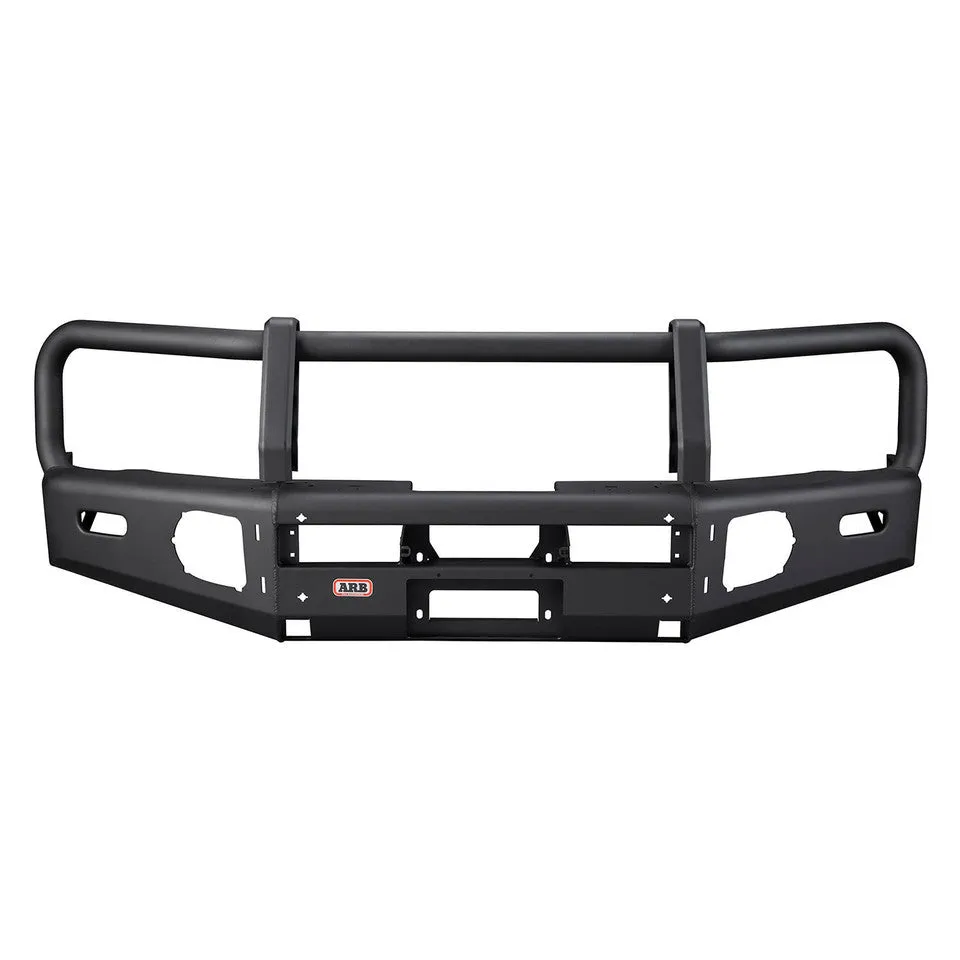

The ARB Summit bar features press form cover straps, fog light surround to accommodate OE fog lights, three piece split pan grill with access door for winch clutch operation and a recessed winch control box mount for a sleek, integrated appearance.

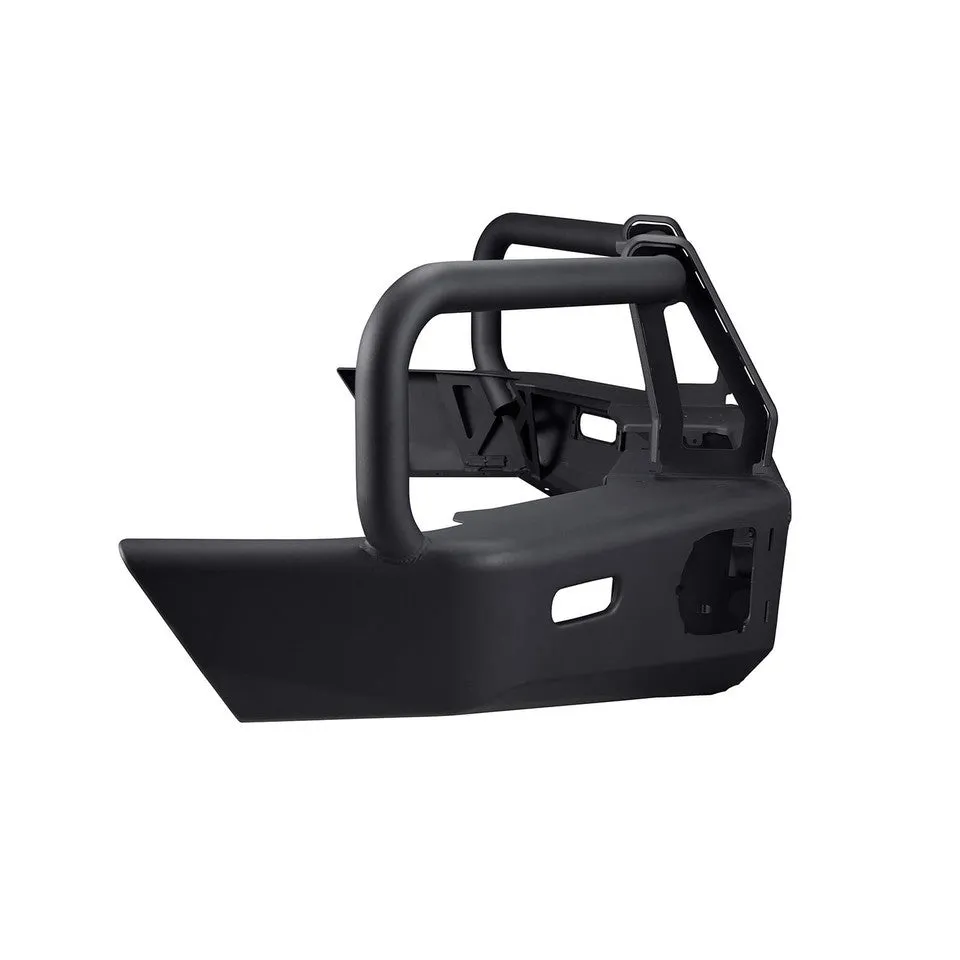

The dynamic nature of the 4Runner chassis requires clearance for the ARB bar and the fenders and grill of the 4Runner. To achieve this necessary clearance the wings of the bar have been designed and developed to both follow the OE bumper and to sit beneath the bumper on the outer edges.

Note: This item is not available for shipping and is only available via will call at a Mule Expedition Outfitters location. Instructions will be emailed when your order is ready for pickup.

Please note this bar replaces the 3421560/K variants and is compatible with 4Runners 2014 onwards. Due to the different front bumper of the 4Runner Limited and TRD models the ARB Summit Bar is not recommended fitment to these models.

Application:

• 2014 On Toyota 4Runner - Non Limited or TRD Models

Protection and Styling Characteristics:

• Vehicle specific design for the Toyota 4Runner 2014 On model excluding the Limited & TRD model. Includes MY20 models fitted with Adaptive Cruise Control.
• Registered design of styling and design components.
• Durable steel construction for maximum protection.
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 30mm radius on wings and centre section.
• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.
• Split pan design for maximum strength and airflow.
• 3 piece grill design for split pan.
• Extensive protection panels on centre and either side.
• Pressed form top pan and aluminum (powder coated black) winch cover panel.
• Twin Hi-Lift jack points located beneath each buffer for optimum strength.
• Durable two piece buffers.
• Includes ARB LED Indicator and Clearance light.
• Two aerial brackets located on the top of the centre tube.
• Will accommodate Warn and Comeup low mount model electric winches up to 10,000lb.
• Provision to accommodate ARB Intensity and Solis LED’s and a range of Bushranger and IPF lights.
• Provision for OE fog lights.
• Provision for optional ARB Fog light covers part no 3500680.
• Bar adds approximately 175mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 192 lbs.
• Metaprep primer for additional corrosion resistance.
• Finished in Integrit textured black powder coat
