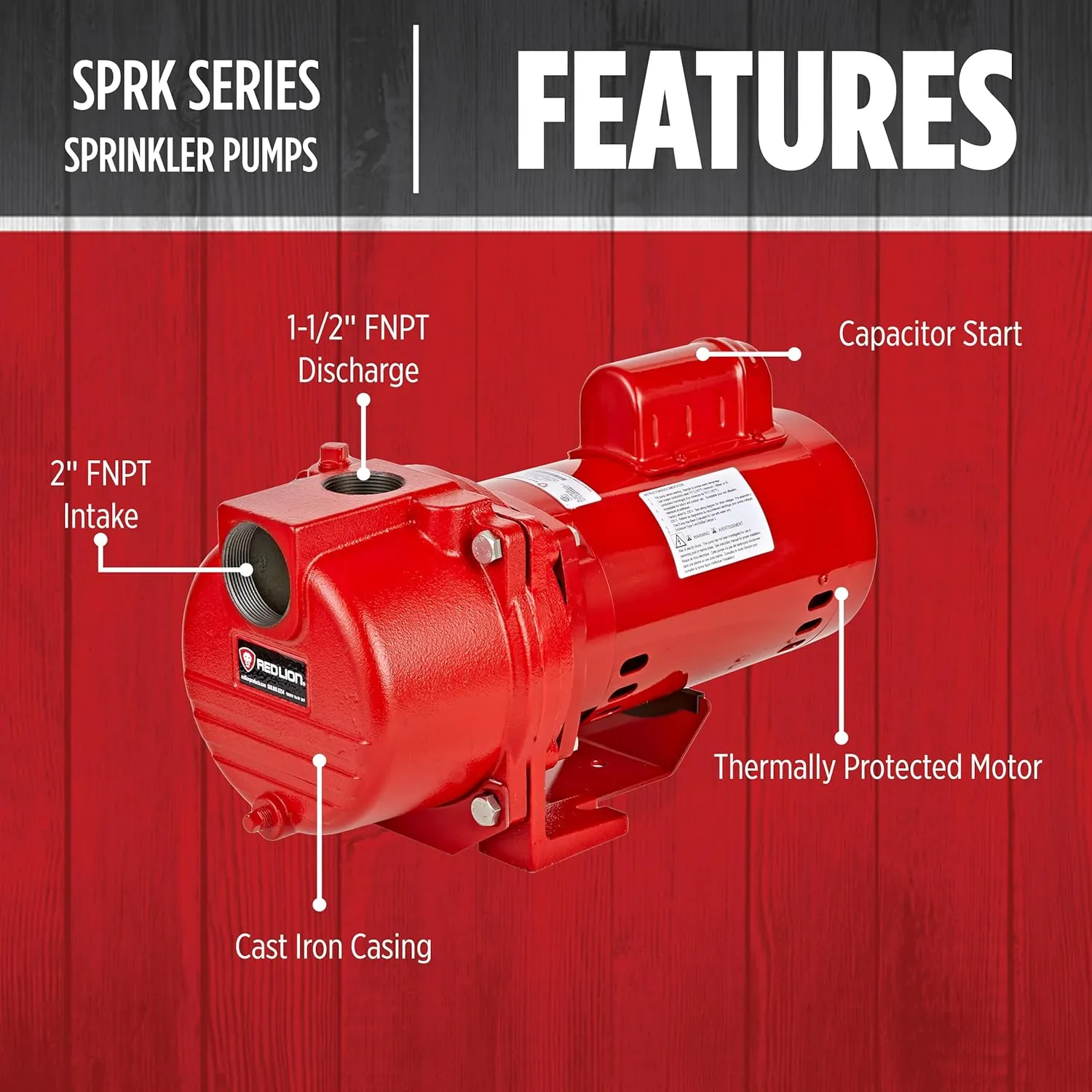

- BUILT TO LAST: Rugged cast iron pump housing and glass-filled thermoplastic impeller for well water and lake water
- MOTOR SPECIFICATIONS: 230 VOLTS, 10.9 running Amps, Capacitor-run PSC design, 7332 locked rotor watts, thermally protected, CSA listed in the US and Canada
- ONE-TIME PRIMING: No additional priming is required after initial fill; follow the priming instructions in the owner's manual

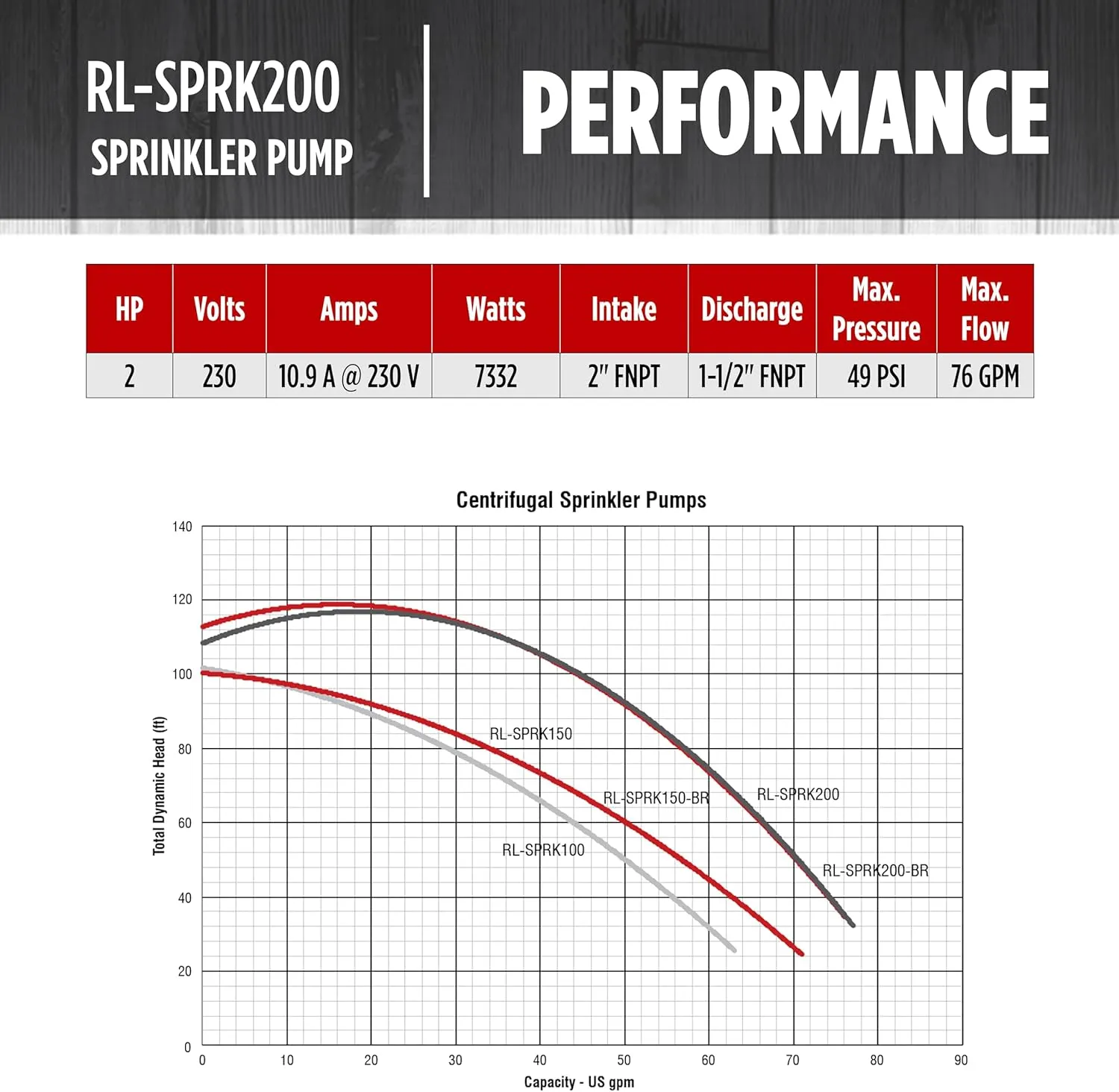

- UP TO 76 GPM at 10 PSI: 64 GPM at 30 PSI - can handle up to 21 sprinkler heads with 1/2-inch fittings or 10 sprinkler heads with 3/4-inch fittings in each zone
- SPECIFICATIONS: 2.0 HP, 230 Volts, 2-inch Female NPT threaded intake; 1.5-inch Female NPT threaded discharge, Max pressure 49 PSI

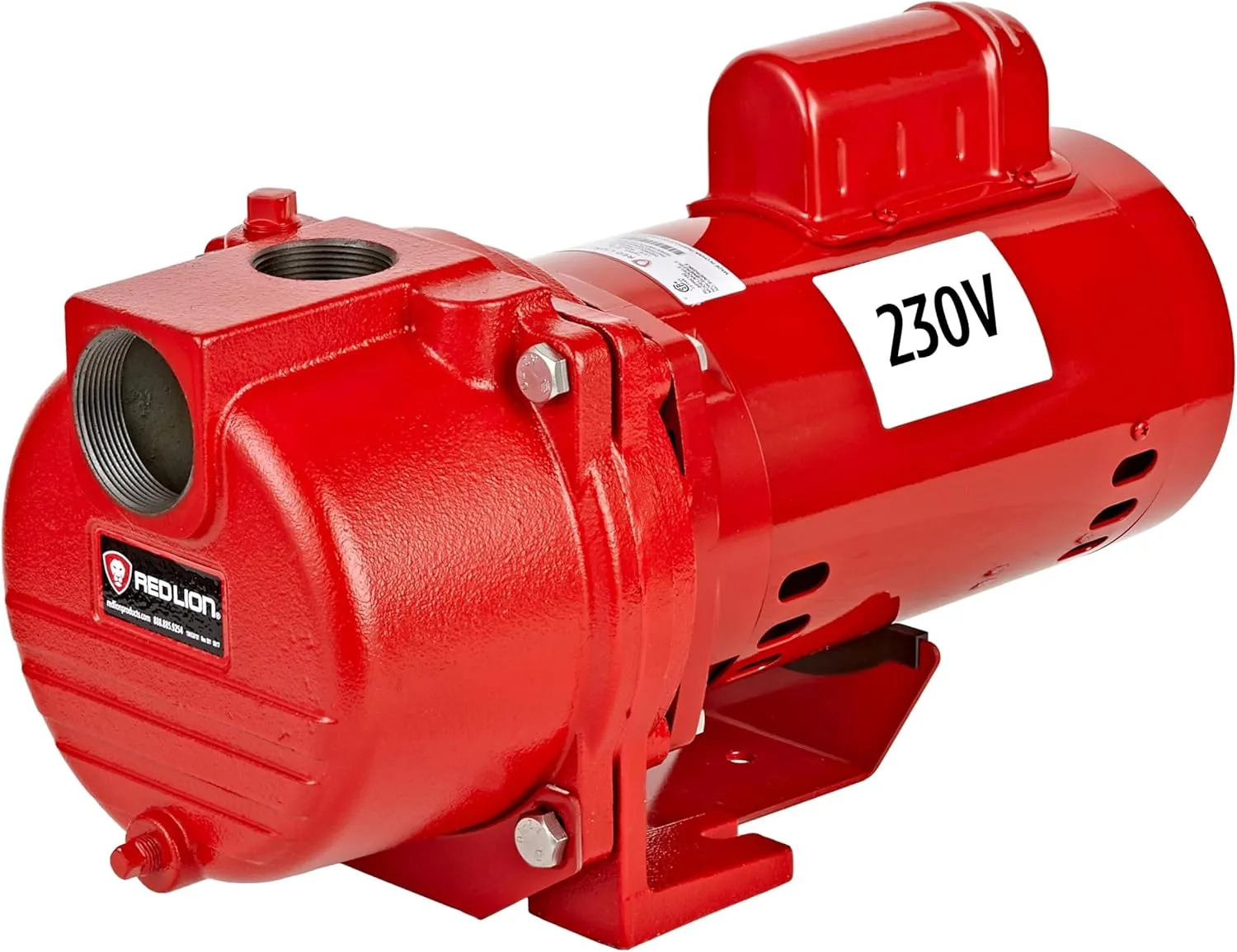

The Red Lion RL-SPRK200 230 Volt, 2 HP sprinkler irrigation pump is idea for both residential and commercial lawn and turn sprinkling systems. This pump features a rugged cast iron casing, high efficiency thermoplastic impeller and diffuser and is to easy to prime to 25-ft - no additional priming is required after the initial fill. This pump is not designed for 115 Volts and does not come with a cord. The pump must be wired into a 230 Volt power source. If pump is not performing to specifications, ensure pump is connected to 230 Volt power source.
