- Type: Var. Speed Pump
- Product Type: Circulator Pump
- Material: Cast Iron
- Horse Power: 1/4
- Voltage: 230v

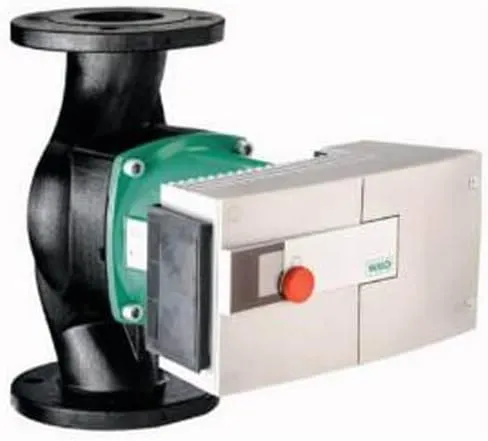

ECM motor technology reduces energy consumption by up to 80%. 3 times higher starting torque than a standard circulator. Red Button technology and LED display. On-board diagnostics and data logger. Multiple control modules available. For use in: Hot water heating systems; Air conditioning systems; Closed cooling circuits; Industrial circulating systems; Water/glycol concentrations up to 50%; Geothermal; Solar.
- Volute: Cast Iron
- Flange Size: 1 1/4"
- Flange Type: 2 Bolt HV
- Phase: 1
- Voltage: 230V
Specifications:
- Type: Var. Speed Pump
- Product Type: Circulator Pump
- Material: Cast Iron
- Horse Power: 1/4
- Voltage: 230v
- Phase: 1
- Temperature Range (F): 14°F - 230°F
- Max Pressure (PSI): 145
- Connection Size: 1-1/4"
- Connection Type: Flanged
- Application: Heating
