- AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
- THERMALLY PROTECTED, HIGH-PERFORMANCE MOTOR: 1/50 HP, 1.0 Amps, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
- BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)

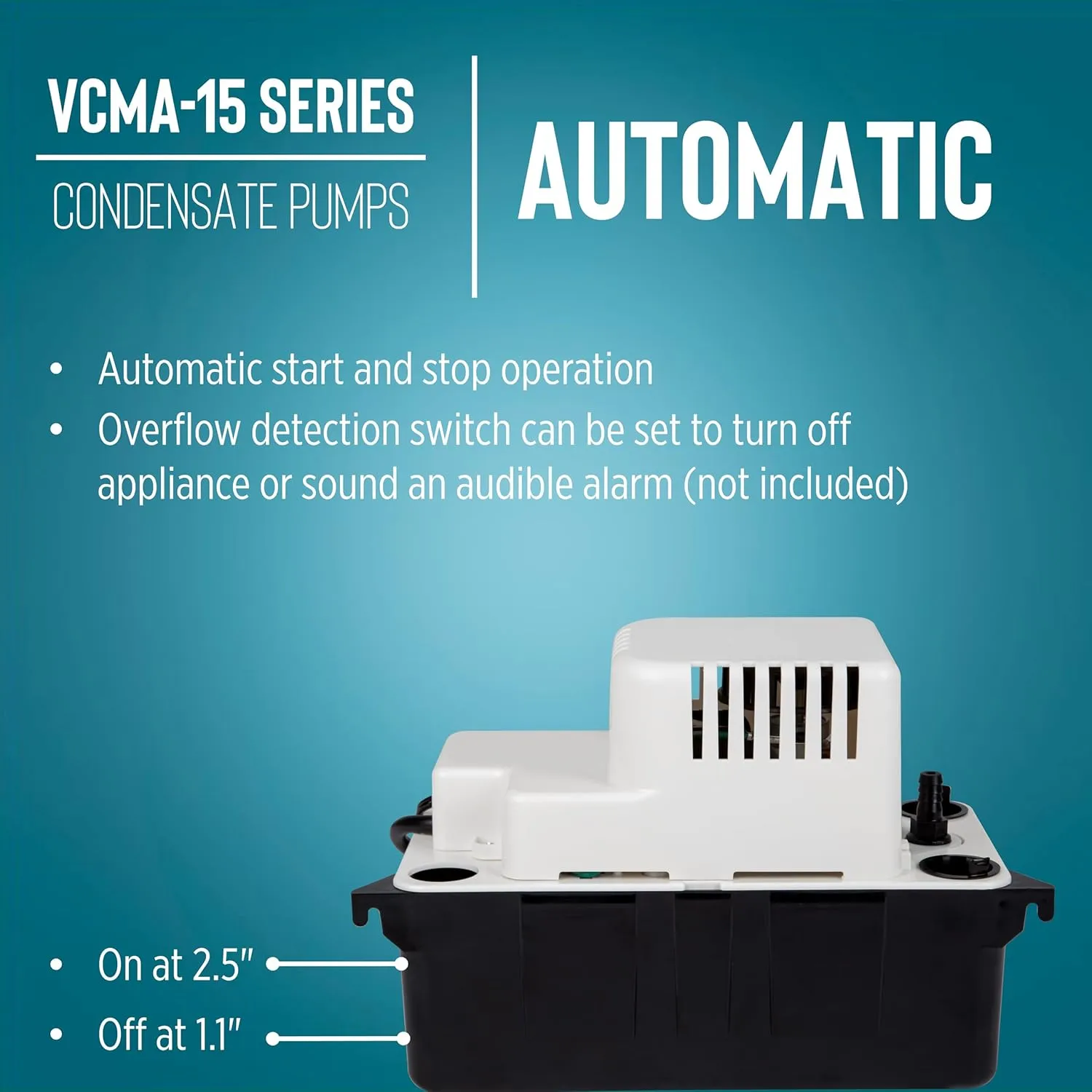

- INCLUDES OVERFLOW DETECTION SWITCH: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required;

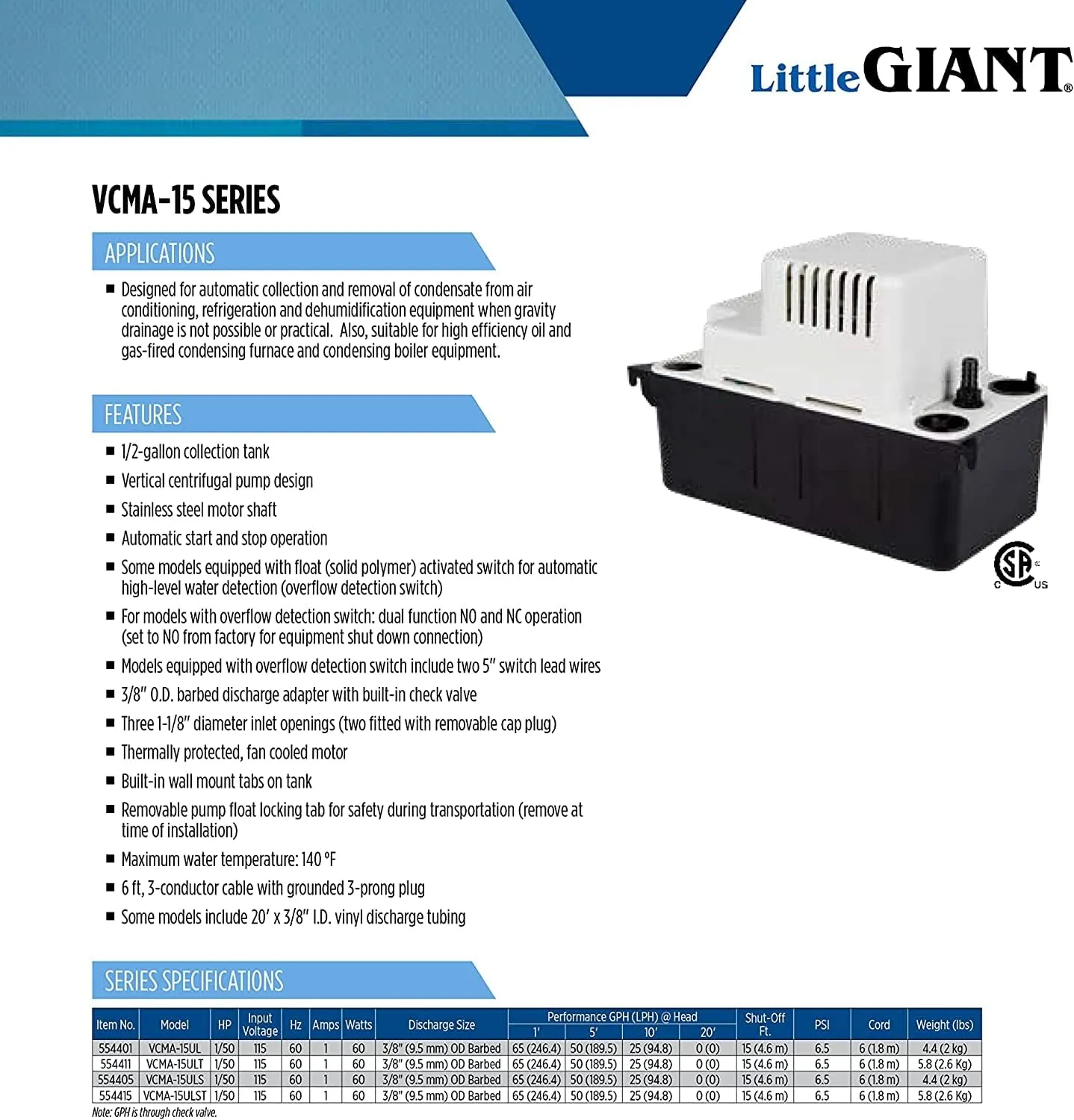

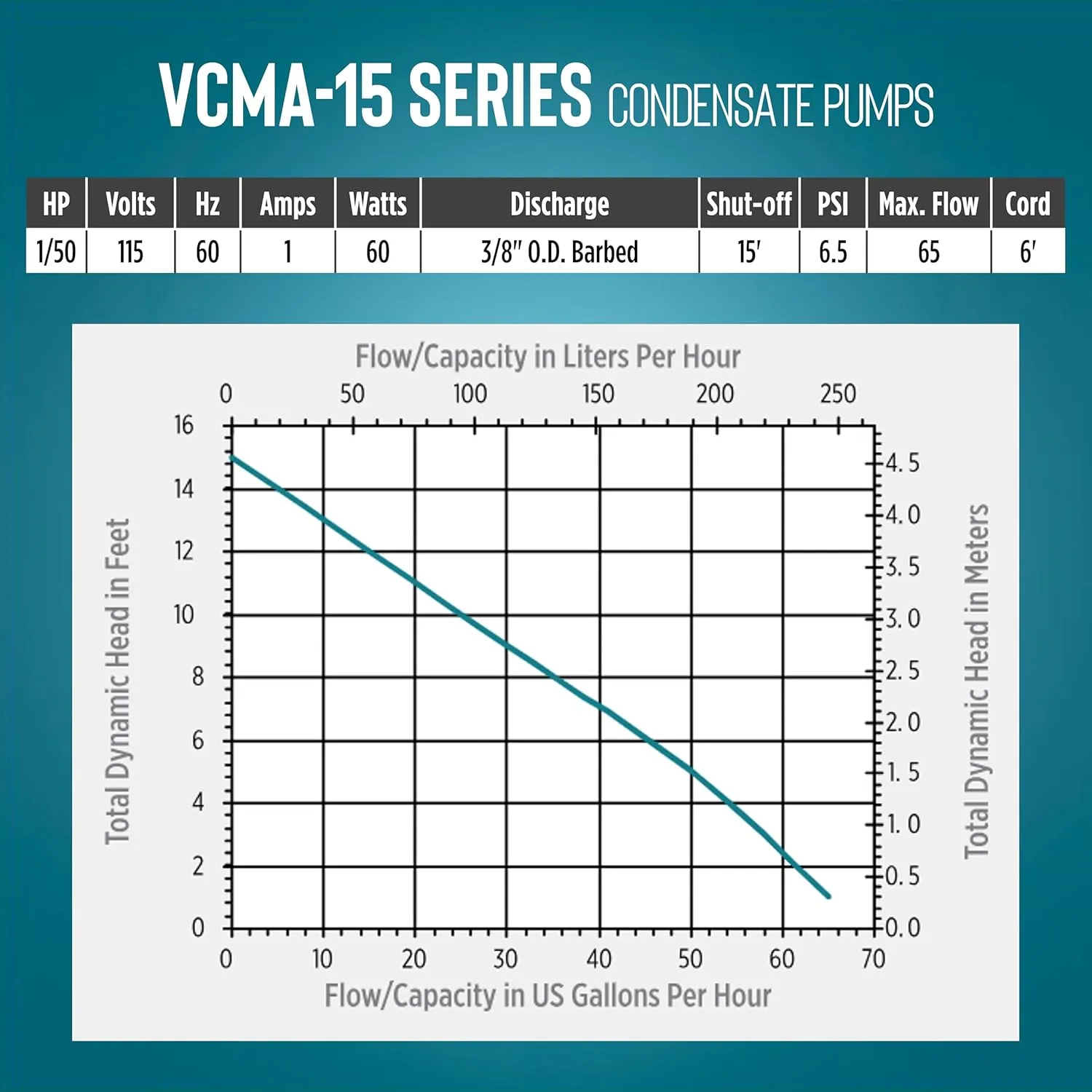

- SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8" OD barbed discharge, 65 GPH at 1' lift, 15' shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140° F
Product Description

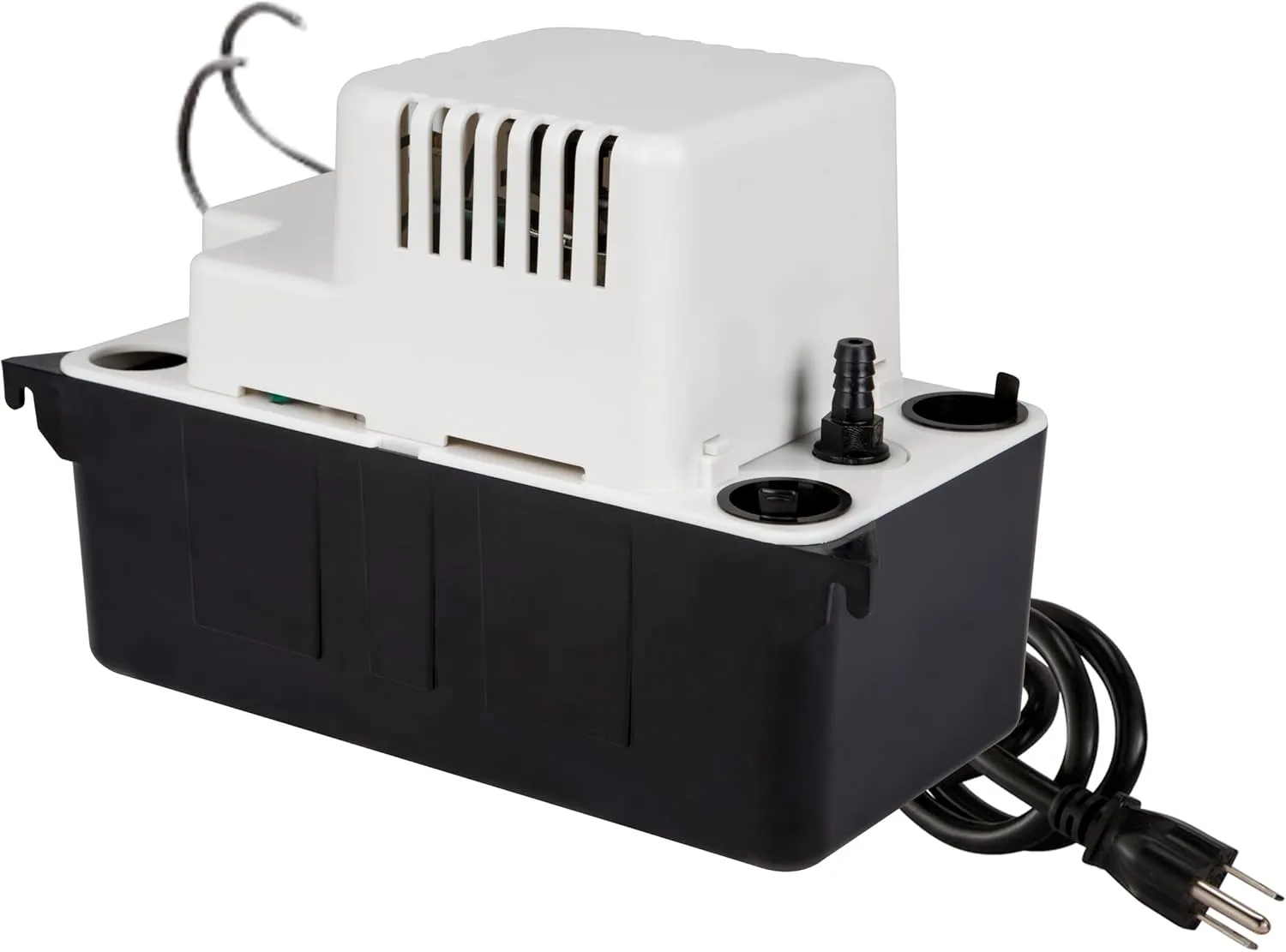

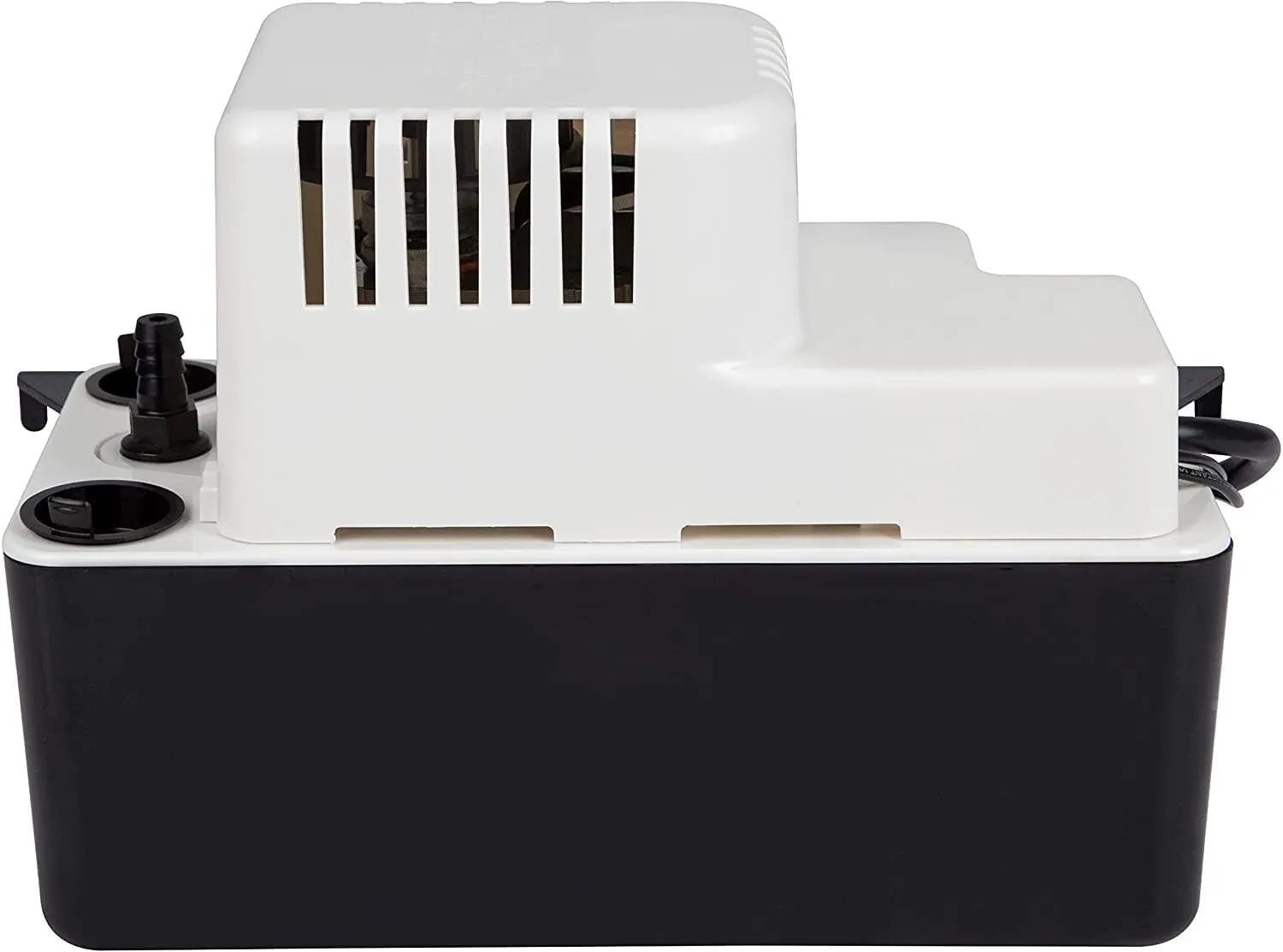

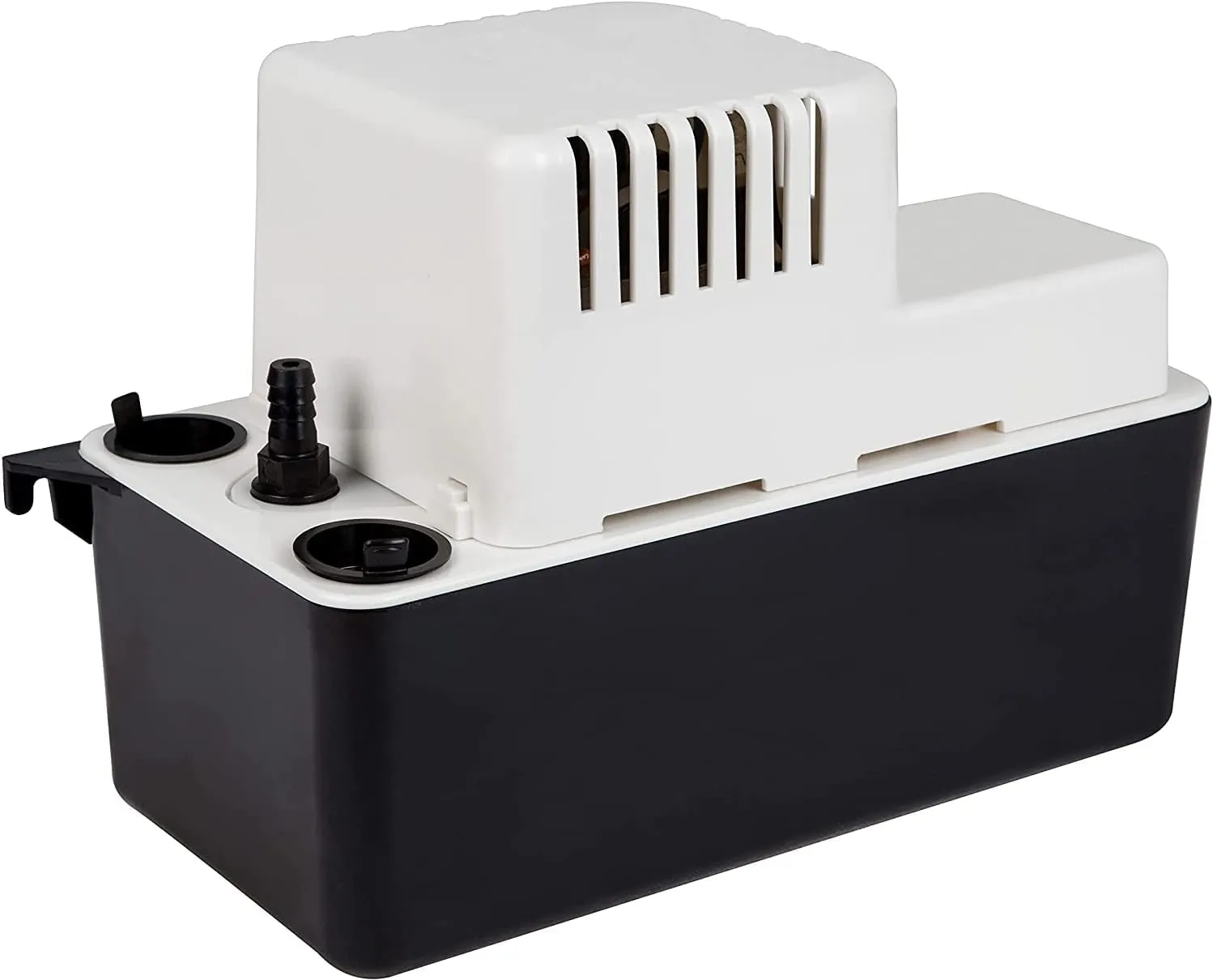

The Little Giant VCMA-15ULS condensate removal pump is a 1/50 hp pump that is designed for collecting, detecting, and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensation and condensing boilers. This unit includes a 1/2-gallon condensate holding tank, a built-in check valve, and overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm; basic wiring knowledge is required. This unit is CSA certified to US and Canadian standards. The high-performance motor is equipped with thermal overload protection.
Features & Benefits:
- 1/50 hp high-performance motor pumps 65 gallons of water per hour
- ABS tank, motor cover, and volute
- Stainless steel motor shaft
- 1/2-gallon tank capacity
- Overflow detection switch included
From the Manufacturer

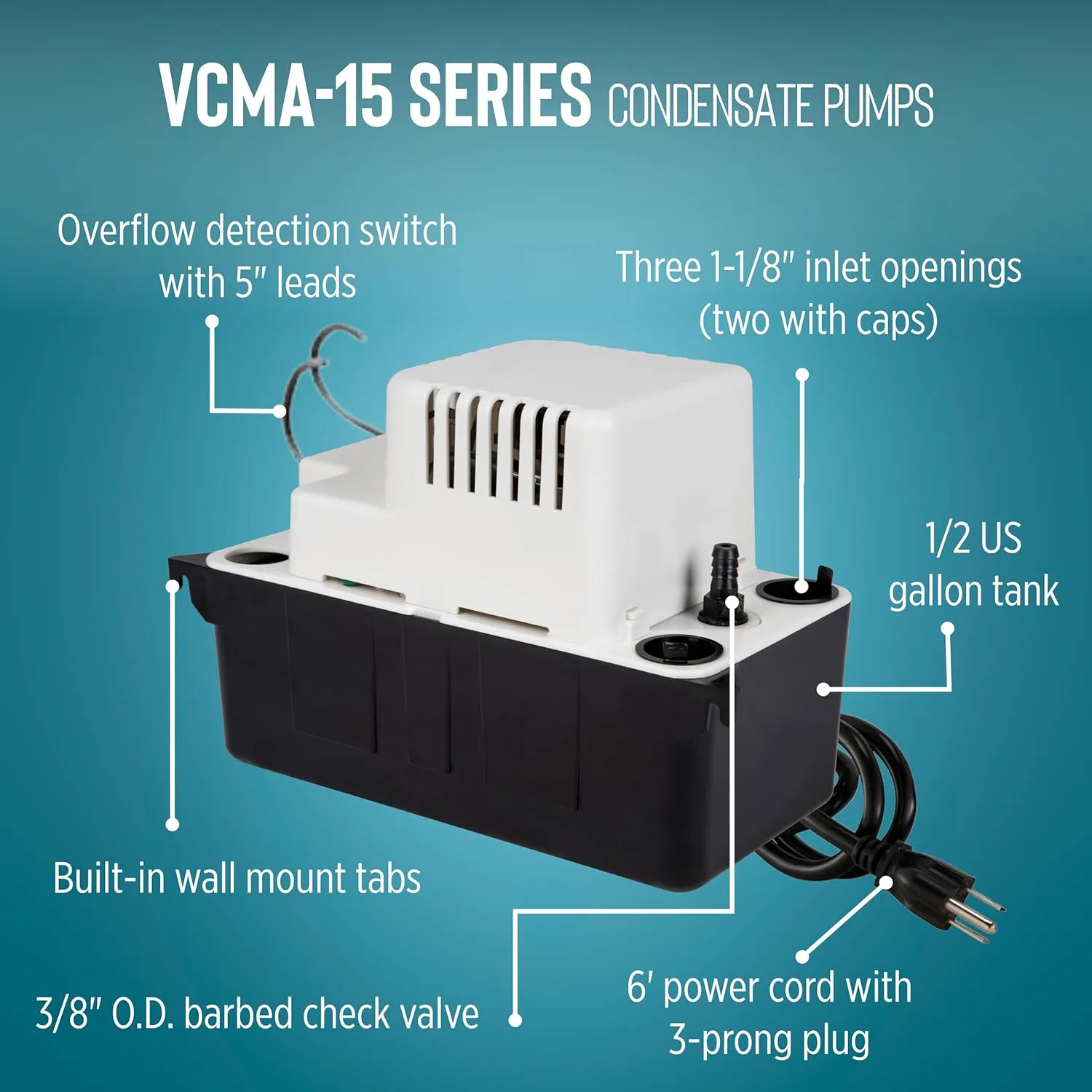

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMA-15ULS features a stainless steel pump shaft, a snap-action pump switch, a removable 3/8 inch barbed check valve, a 6 foot power cord, and a 1/50 horsepower high performance motor with thermal overload protection. The pump also features an ABS tank, ABS motor cover, and ABS volute. With a check valve, the VCMA-15ULS pumps 65 GPH (with a discharge head of one foot). The pump's tank has a capacity of 1/2 gallon.
