- Key Product Features and Highlights

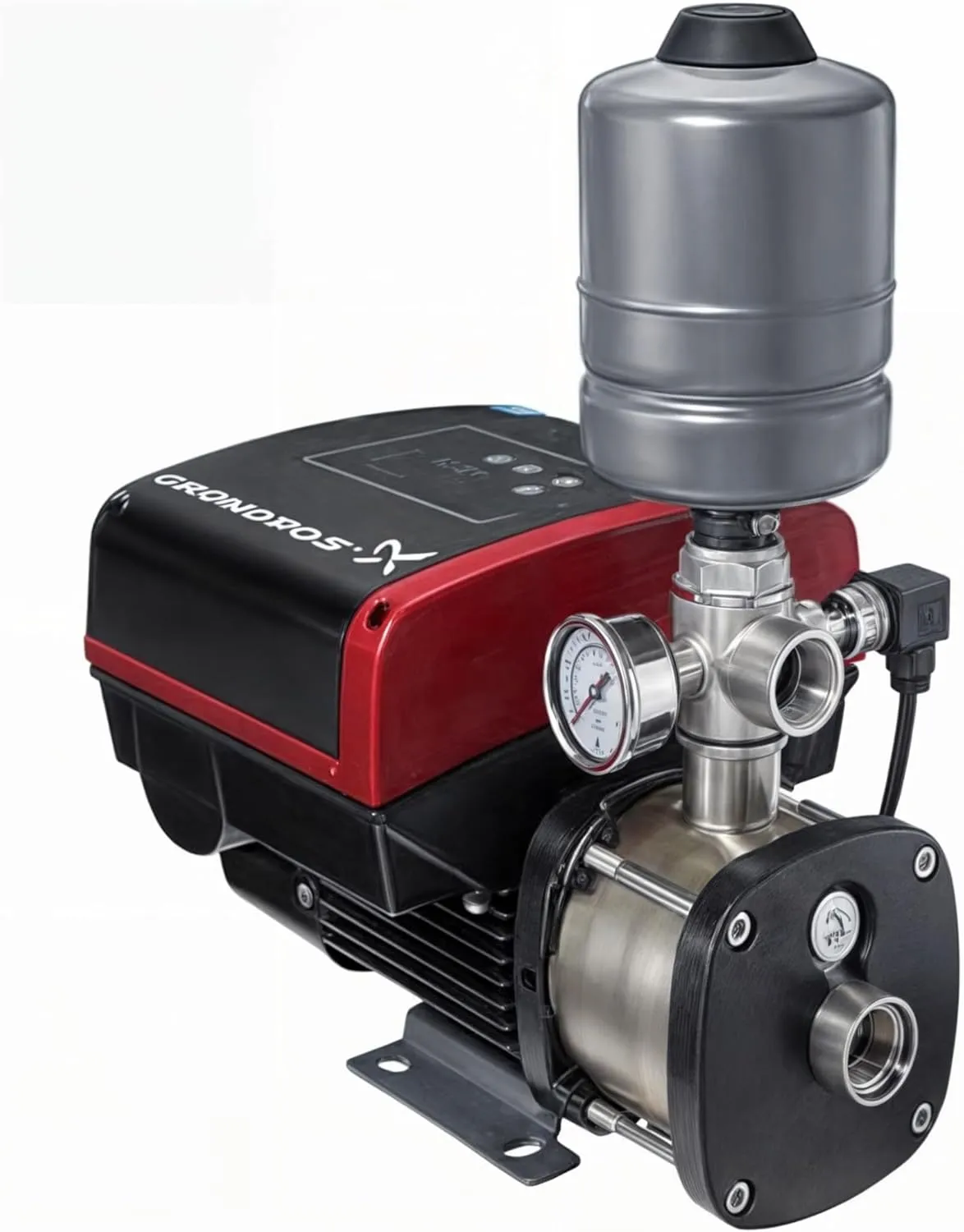

- The Grundfos CMBE booster pump is a high-performance, energy-efficient solution for various water supply needs. At its core is a powerful 1 HP MGE frequency-controlled permanent-magnet motor that operates on 115V, drawing a maximum of 8 amps. Highly efficient the motor delivers impressive performance, with a flow rate of 16.3 GPM, maximum pressure of 145 PSI, total head lift of 161 feet, and a suction head of 23 feet.
- Equipped with an integrated speed controller, it works in tandem with a continuous pressure sensor to maintain constant pressure in the pipe system. This smart technology adjusts the motor speed based on demand, providing 20-60 PSI at 0-15 GPM and 20-40 PSI at 0-25 GPM. The result is consistent water flow and pressure, adapting seamlessly to changing conditions and eliminating fluctuations.
- Constructed with a stainless-steel pump housing and impeller, the Gundfos is both durable and reliable, offering superior corrosion resistance for long-lasting performance and dry-running protection to prevent damage. The pump is NSF 61/372 approved for use in drinking water applications, ensuring safety and peace of mind.
- Extremely user-friendly, it comes as a compact, preassembled system that includes the pump, motor, diaphragm tank, pressure gauge, pressure sensor, controller, and a 5-way fitting with a non-return valve. Installation is simplified with a 5-foot power cord and a 3-prong plug.
- The Grundfos Eye Control Panel provides straightforward operation and system status monitoring, while compatibility with the Grundfos GO mobile app allows remote monitoring.
- Versatile and suitable for a wide range of applications, including water supply and pressure boosting in light commercial settings, irrigation systems, and dewatering projects, the pump operates extremely quietly, with noise levels below 55 dB(A) during normal use, making it ideal for residential settings.
