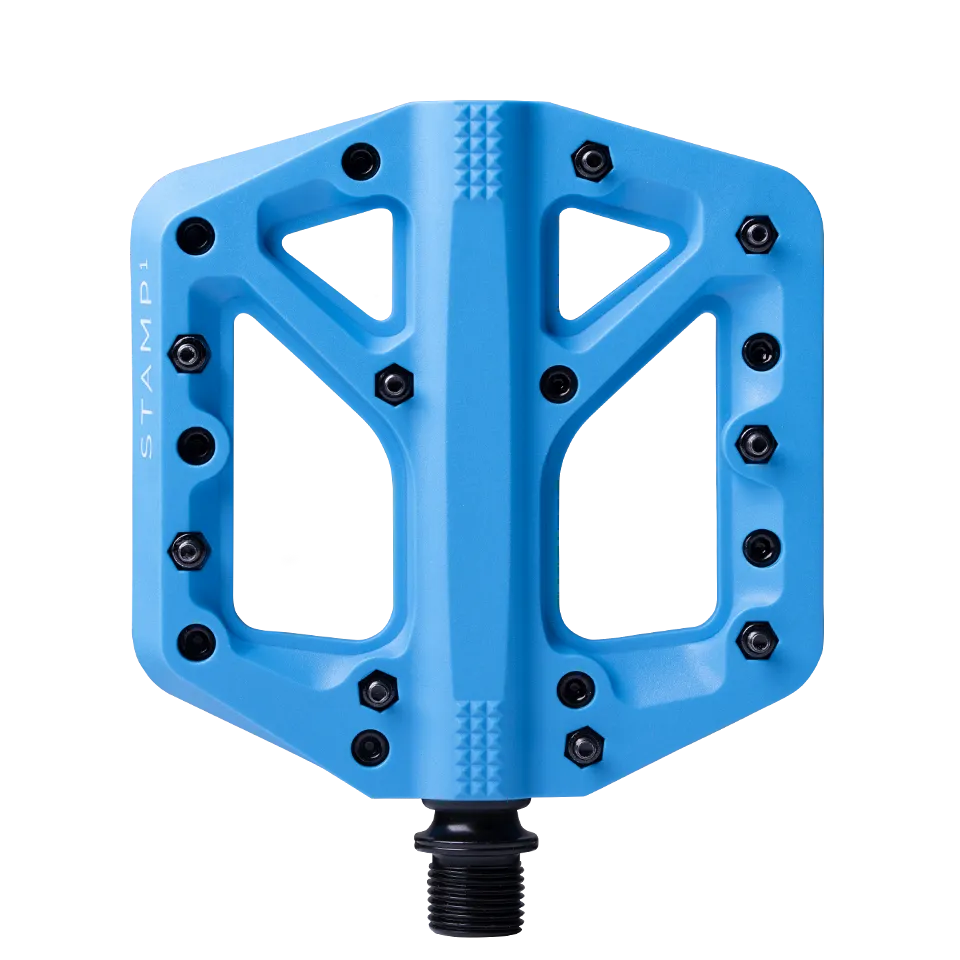

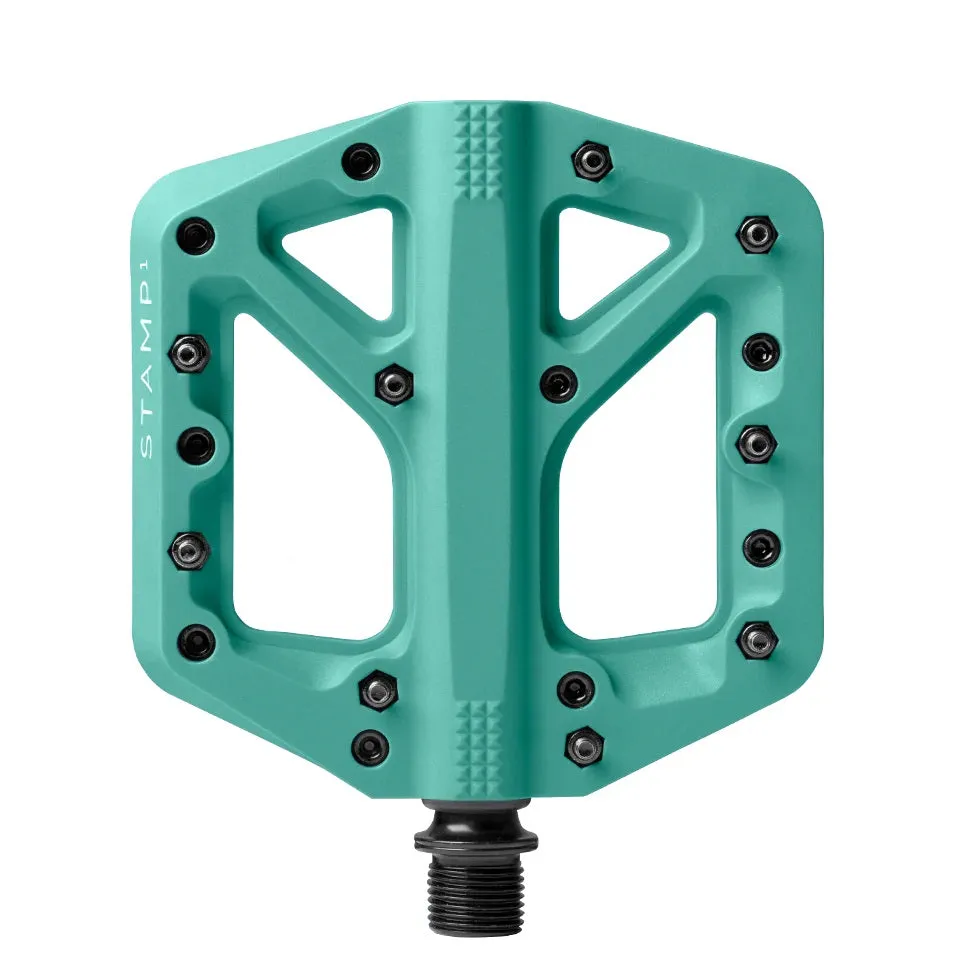

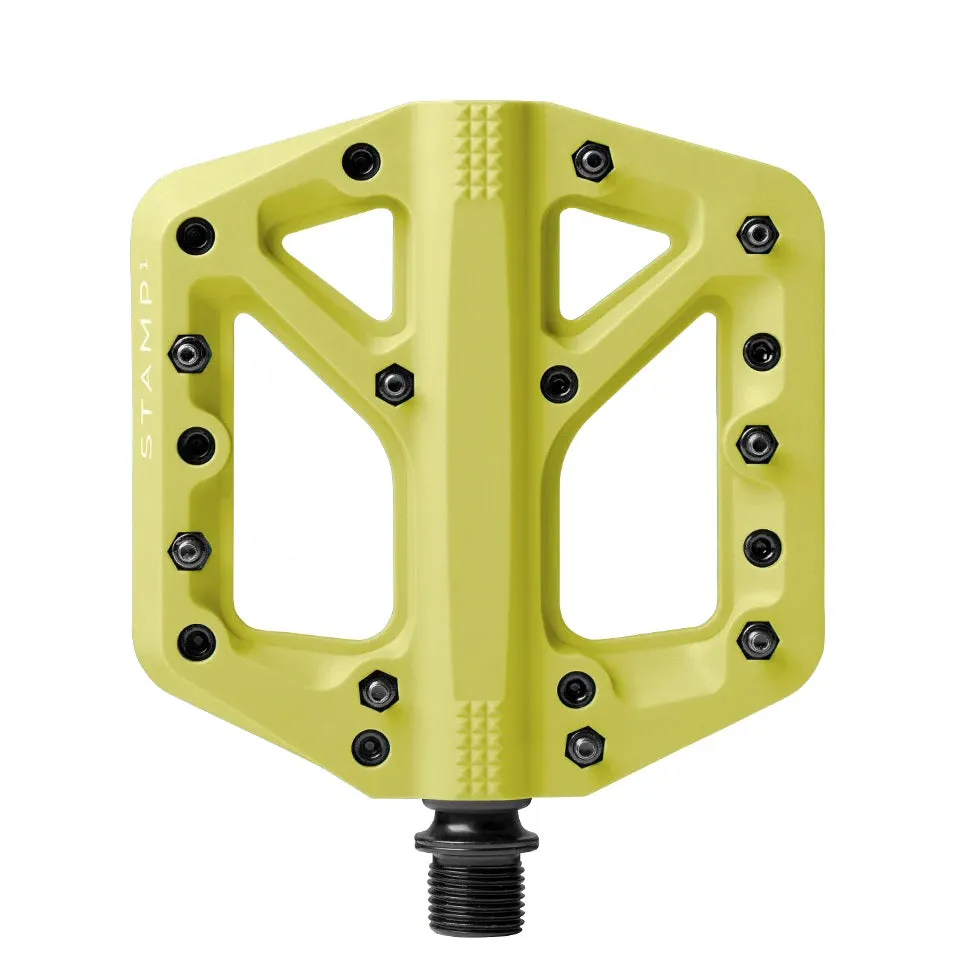

The Stamp 1 pedal is a size-specific composite platform pedal with optimal shoe/pedal interface, premium bearings and seal system, and 9 x 10mm hex traction pins per side.
FEATURES
- Optimal surface area
- Minimal profile 13mm thin
- 10mm hex traction pins, 9 per side
- 12mm hex traction pins available through small parts orders
- Premium bearings & seal system
- Stamp small recommended for shoe sizes: 37-43 (EU)
- Stamp large recommended for shoe sizes: 43-49 (EU)
- Intended use: City, Trail, Enduro, Downhill
- Voted 1 Winner of Vital MTB's Audience Survey - 1 Flat Pedals To Buy
- Size-specific Platform: Available in Small or Large for optimal shoe/pedal interface
- Match System: Designed for an optimized interface with Crankbrothers' Stamp shoes
SPECIFICATIONS
| Feature | Specification |
|---|---|
| Footprint | 100mm x 100mm |
| Shoe Size | US 5-10 // EU 37-43 |
| Weight | 299g per pair |
| Warranty | 5 years |
| Inner Bearing Type | Igus LL-glide bearing |
| Outer Bearing Type | Enduro MAX cartridge bearing |
| Body Material | Composite |
| Traction Pins | 9 replaceable per side |
| Pin Length | 10mm |
| Spindle Material | Forged SCM 435 Chromoly Steel |
