- The AEM 400lph High Flow Fuel Pump is designed for use with gasoline; Alcohol fuels can be used, but pump life will be diminished; The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

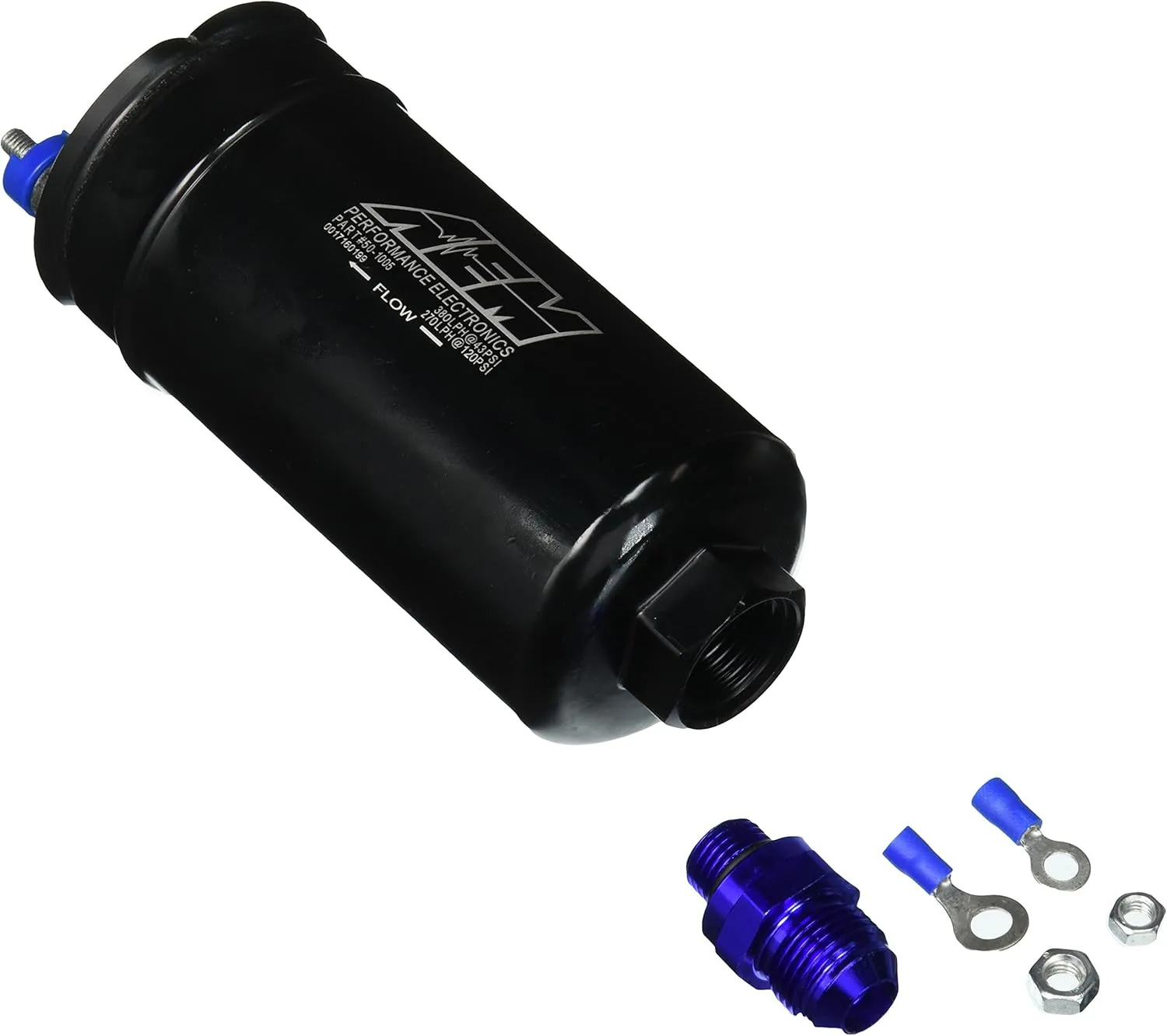

- A male -6 to -8 AN discharge fitting with integral high pressure check valve, terminal nuts, terminal boots and installation instructions are included
- Designed for high output naturally aspirated and forced induction EFI vehicles
- Popular "044 Style" physical configuration but with AN inlet & discharge port connections
- Each pump individually tested to flow minimum of 400lph (100gph) at 40 PSI
AEM's 400lph High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost! It flows 400 lph (100 gph) at 40 PSI, 340 lph (90 gph) at 73 PSI, and 270 lph (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs fuel pressure charts are available in the specs tab. Outside Diameter: 60mm OD
